INTREPID™ Phaco Tips and INTREPID™ Transformer I/A Handpiece



INTREPID Hybrid Tip, INTREPID Balanced Tip, and INTREPID Transformer I/A handpiece each on an individual blue circle background

Back to Category Page

INTREPID™ Phaco Tips and INTREPID™ Transformer I/A Handpiece



INTREPID Hybrid Tip, INTREPID Balanced Tip, and INTREPID Transformer I/A handpiece each on an individual blue circle background



Back to Category Page

Want To Expand Your Cataract Surgery Practice?

INTREPID™ Hybrid Tip



INTREPID™ Hybrid Tip takes safety and confidence to the next level in the OR.1-4

  • Two trusted technologies in one innovative design
  • Based on fluidics performance advantage of the INTREPID™ BALANCED Tip1,2
INTREPID Hybrid Tip on a blue circle background.

NORD-CNT-2300009



For Efficient Nuclear Removal



  • More lateral movement at tip, less shaft movement at incision site2
  • Minimal heat production9,10

NORD-CNT-2300008



For Safety and Confidence



  • Polymer edge reduces the risk of capsular tears, PCR and capsule related problems5-8
  • Rounded edge is designed to ease occlusion5

Prof. Daniele Tognetto: Redefine Safety and Confidence



Prof. Bissen-Miyajima asks Prof. Tognetto if there are any limits to the use of the INTREPID™ Hybrid Tip.

NORD-CNT-2300015

Centurion™ Vision System with ACTIVE SENTRY™ Handpiece



Explore how to bring safety and confidence to the next level

See More
CENTURION Vision System with an ACTIVE SENTRY Handpiece in front of a light-blue background.

Designed to reduce PCR likelihood by almost 70%8

A bar graph, measured in percentage, displaying the mean torsional power required for posterior capsule rupture between Hybrid Torsional Power and Metal Torsional Power. Hybrid Torsional power is represented by the light-blue coloured bar and measures around 45%, while Metal Torsional Power is represented by the dark blue bar and measures around 12%.

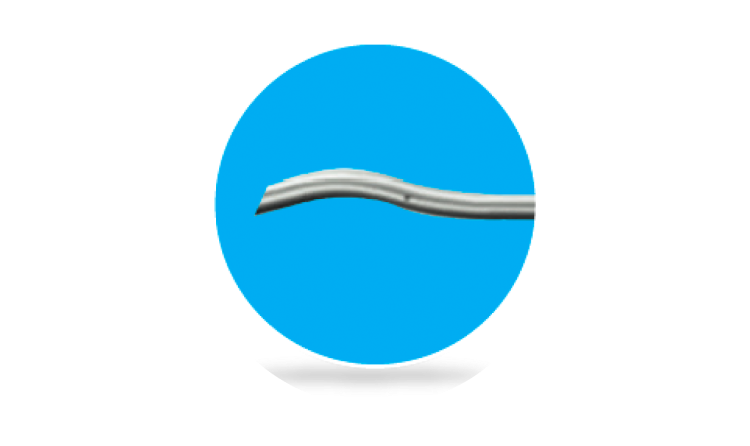

INTREPID Balanced Tip on a blue circle background.
INTREPID Balanced Tip on a blue circle background.

INTREPID™ BALANCED Tip



The combination of INTREPID™ BALANCED Tip and OZil™ Torisonal allows superior nuclear removal compared to Kelman™ tip, thanks to increased torsional amplitude at the distal end.2,9,11

Optimised OZil™ Torsional with the INTREPID™ BALANCED Tip redefines nuclear removal.



The INTREPID™ BALANCED Tip provides better fluidics performance, resulting in2,9,11:

  • Reduced cumulative dissipated energy (CDE)
  • Lower phaco time
  • Lower total aspiration time
  • Lower fluid use
Learn More

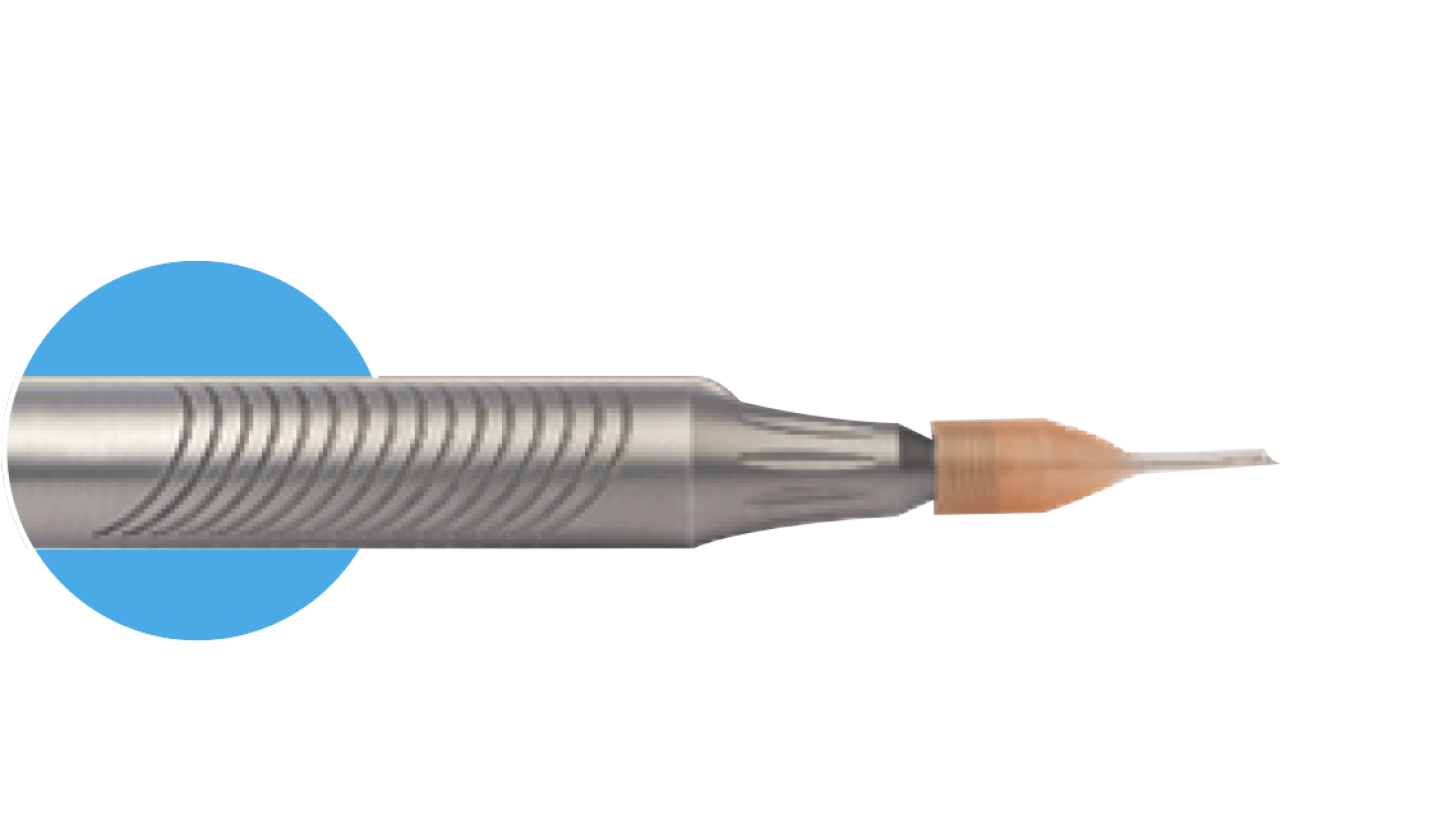

OZil Torsional with an INTREPID Balanced Tip.

See the Data

Bar graph comparing the Kelman tip to the INTREPID BALANCED Tip based on reduced cumulative dissipated energy (CDE). The graph emphasizes that the INTREPID BALANCED tip reduces CDE by 36.5% when compared to the Kelman tip. Bar graph comparing the Kelman tip to the INTREPID BALANCED Tip based on reduced phaco time. The graph emphasizes that the INTREPID BALANCED tip reduces phaco time by 21.5% when compared to the Kelman tip. Bar graph comparing the Kelman tip to the INTREPID BALANCED Tip based on reduced aspiration time. The graph emphasizes that the INTREPID BALANCED tip reduces aspiration time by 14.4% when compared to the Kelman tip. Bar graph comparing the Kelman Tip to the INTREPID BALANCED Tip based on reduced fluid use. The graph emphasizes that the INTREPID BALANCED tip reduces fluid use by 31.4% when compared to the Kelman tip.

INTREPID™ BALANCED Tip reduces tip movement at the incision11



The INTREPID™ BALANCED Tip reduces tip movement at the incision, lowering thermal risk during surgery, which can result in less tissue damage at the incision site.9,11

Graph comparing the INTREPID BALANCED Tip to the Mini Tip based on tip movement at the incision.

Centurion™ Vision System with ACTIVE SENTRY™ Handpiece



Explore how to benefit from enhanced cutting efficiency and wound integrity

See More
CENTURION Vision System with ACTIVE SENTRY Handpiece in front of a light-blue background.

CENTURION™ Silver System



Explore how to benefit from enhanced cutting efficiency and wound integrity

See More
CENTURION Silver System in front of a light-blue background.

NORD-CNS-2300003



INTREPID™ BALANCED
Tip Overview

NORD-CNS-2300001



Comparison with Kelman™ Tip

NORD-CNS-2300004



INTREPID™ BALANCED Tip Redefines Cutting Efficiency


INTREPID Transformer I/A Handpiece on a blue circle background.
INTREPID Transformer I/A Handpiece on a blue circle background.

INTREPID™ Transformer I/A Handpiece



Transform I/A Performance to Enhance Safety and Confidence6,7,12,13



The Transformer I/A Handpiece is specifically engineered for an easy transition from either coaxial or bimanual cortical removal without the need to change handpieces, allowing for adaptability in a variety of cases.12

  • Enables versatile I/A technique
  • Features capsular-friendly polymer tips for reducing risk of PCR and capsule related problems

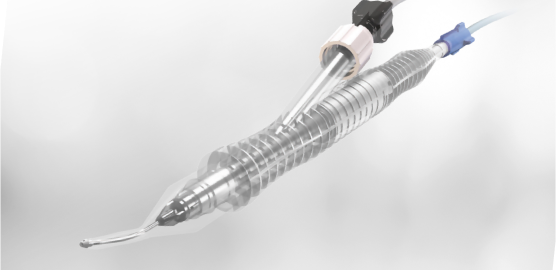

Coaxial Performance



INTREPID Transformer I/A Handpiece showcasing its coaxial performance in front of a grey background.

  • Enhanced irrigation flow13
  • Accessibility to cortical material in almost all directions

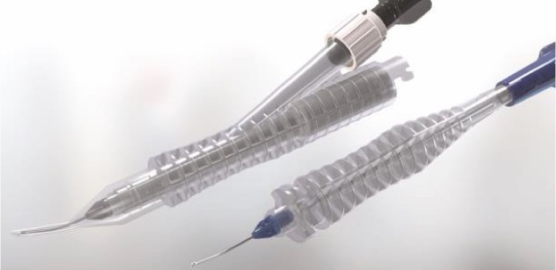

Bimanual Performance



INTREPID Transformer I/A Handpiece showcasing its bimanual performance in front of a grey background.

  • Greater access to the subincisional cortex
  • Extractable aspiration port features polymer-tip

CENTURION™ Vision System with ACTIVE SENTRY™ Handpiece



The leading technology in phacoemulsification, offering a new baseline of safety, consistency and efficiency in every cataract procedure.2,10,14-19

See More
CENTURION Vision System with ACTIVE SENTRY Handpiece in front of a light-blue background.

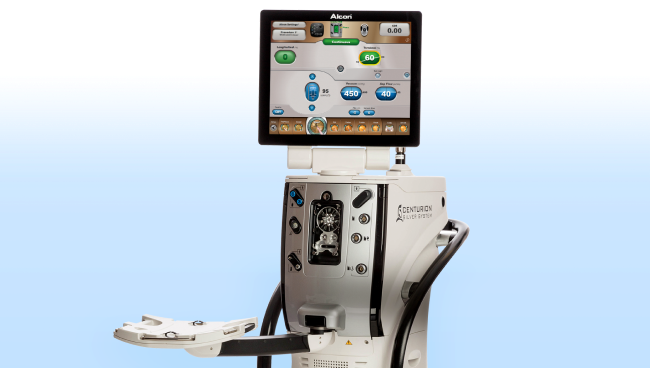

CENTURION™ Silver System



The most advanced gravity system, with enhanced stability and efficiency during phacoemulsification.6,7,16,17,20-23

See More
CENTURION Silver System in front of a light-blue background.

Clinical Support

Shumway C et al., Evaluation of the capsular safety of a new hybrid phacoemulsification tip in a cadaver eye



Evaluating the use of a new hybrid phacoemulsification tip made with a high strength polymer overmold designed to prevent posterior capsule rupture (PCR) compared with a metal tip
NOTE: JCRS articles are not open source and require membership

Instructions for Use (IFU)



For a full list of indications, contraindications and warnings, please visit ifu.alcon.com and refer to the relevant product’s instructions for use.

Visit IFU Database

Alcon Experience Academy



For relevant training content from industry thought leaders

Visit AEA Portal

References:

1. CENTURION™ FMS Pack Directions for Use.
2. Khokhar S, Aron N, Sen S, Pillay G, Agarwal E. Effect of balanced phacoemulsification tip on the outcomes of torsional phacoemulsification using an active-fluidics system. J Cataract Refract Surg. 2017;43(1):22-28.
3. Solomon et al. Clinical study using a new phacoemulsification system with surgical intraocular pressure control. J Cataract Refract Surg. 2016; 42:542–549.
4. Zacharias J. Comparative motion profile characterization of the miniflared and balanced phacoemulsification tips. ESCRS Annual Congress; 2015; Barcelona.
5. Alcon Data on File, REF-07136, 2019.
6. Narendran N, et al. The Cataract National Dataset electronic multicentre audit of 55 567 operations: Risk stratification for posterior capsule rupture and vitreous loss. Eye. 2009;23:31–37.
7. Salowi MA, et al. The Malaysian Cataract Surgery Registry: Risk indicators for posterior capsular rupture. Br J Ophthalmol. 2017;101:1466–1470.
8. Shumway C. Utility of a novel hybrid phacoemulsification tip to prevent posterior capsule rupture. Presentation at ASCRS 2019; 3-7 May; San Diego.
9. Zacharias J. Thermal characterization of phacoemulsification probes operated in axial and torsional modes. J Cataract Refract Surg. 2015;41(1):208-216.
10. Zacharias J. Laboratory assessment of thermal characteristics of three phacoemulsification tip designs operated using torsional ultrasound. Clin Ophthalmol. 2016:10;1095–1101.
11. Noguchi S, et al. Difference in torsional phacoemulsification oscillation between a balanced tip and a mini tip using an ultra-high-speed video camera. J Cataract Refract Surg. 2016;42:1511–1517.
12. Intrepid™ Transformer I/A Handpiece Directions for use.
13. Alcon Data on File, REF-04313, 2013.
14. CENTURION™ Vision System Operator's Manual.
15. Alcon Data on File, REF-02559, 2017.
16. Thorne A, Dyk DW, Fanney D, Miller KM. Phacoemulsifier occlusion break surge volume reduction. J Cataract Refract Surg. 2018 Dec;44(12):1491-1496.
17. Aravena C, Dyk DW, Thorne A, Fanney D, Miller KM. Aqueous volume loss associated with occlusion break surge in phacoemulsifiers from 4 different manufacturers. J Cataract Refract Surg. 2018 Jul;44(7):884-888.
18. Malik PK, Dewan T, Patidar AK, Sain E. Effect of IOP based infusion system with and without balanced phacotip on cumulative dissipated energy and estimated fluid usage in comparison to gravity fed infusion in torsional phacoemulsification. Eye Vis (Lond). 2017;4:22.
19. Vasavada AR, et al. Comparison of torsional and microburst longitudinal phacoemulsification: A prospective, randomized, masked clinical trial. Ophthalmic Surg Lasers Imaging. 2010;41(1):109-114.
20. Nicoli CM, Dimalanta R, Miller KM. Experimental anterior chamber maintenance in active versus passive phacoemulsification fluidics systems. J Cataract Refract Surg. 2016;42(1):157:162.
21. Dyk DW, Miller KM. Mechanical model of human eye compliance for volumetric occlusion break surge measurements. J Cataract Refract Surg.2018 Feb;44(2):231-236.
22. Alcon Data on File, REF-08357, 2020.
23. Sharif-Kashani P, Fanney D, Injev V. Comparison of occlusion break responses and vacuum rise times of phacoemulsification systems. BMC Ophthalmol. 2014;14:96.



Medical Devices manufactured by Alcon comply with all applicable laws and regulations. For indications, contraindications, warnings and serious incidents please refer to the relevant product’s direction for use or operator manuals.

©2021 Alcon Inc. NORD-INT-2300001
